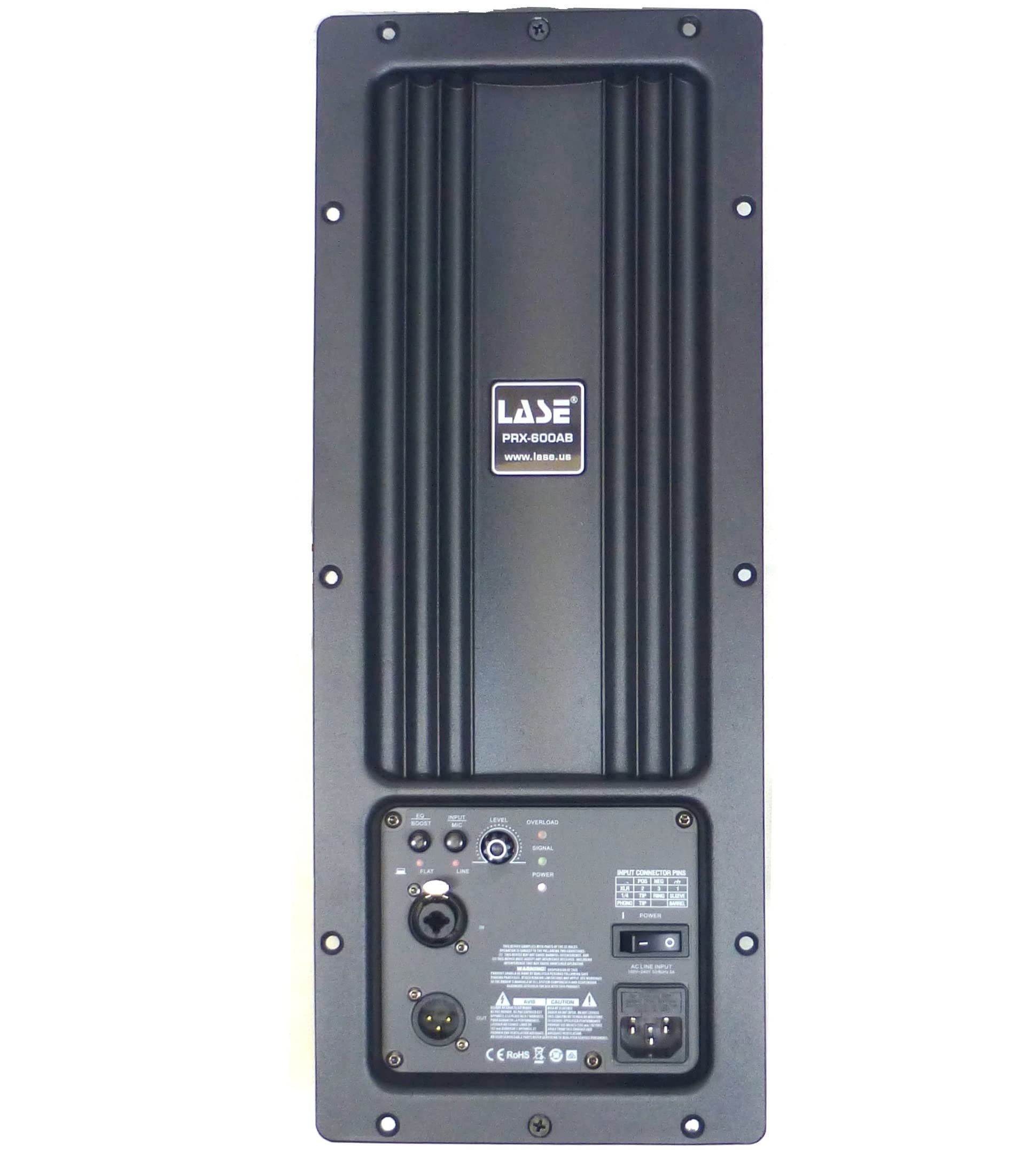

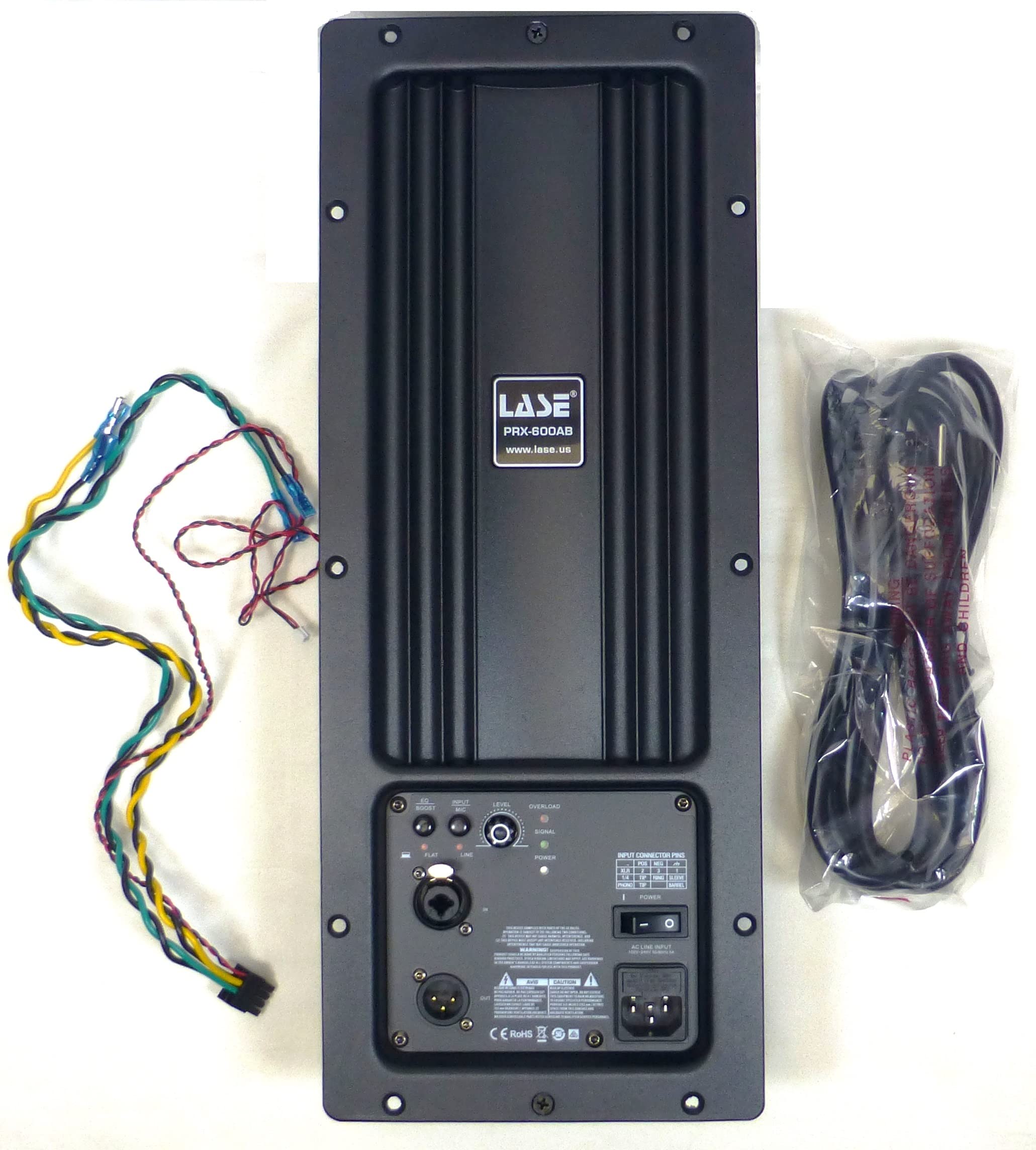

JBL PRX 600AB Replacement Amplifier Module - Compatible with PRX615M & PRX612M Powered Speakers - Perfect for Live Sound, DJ Performances & Stage Events

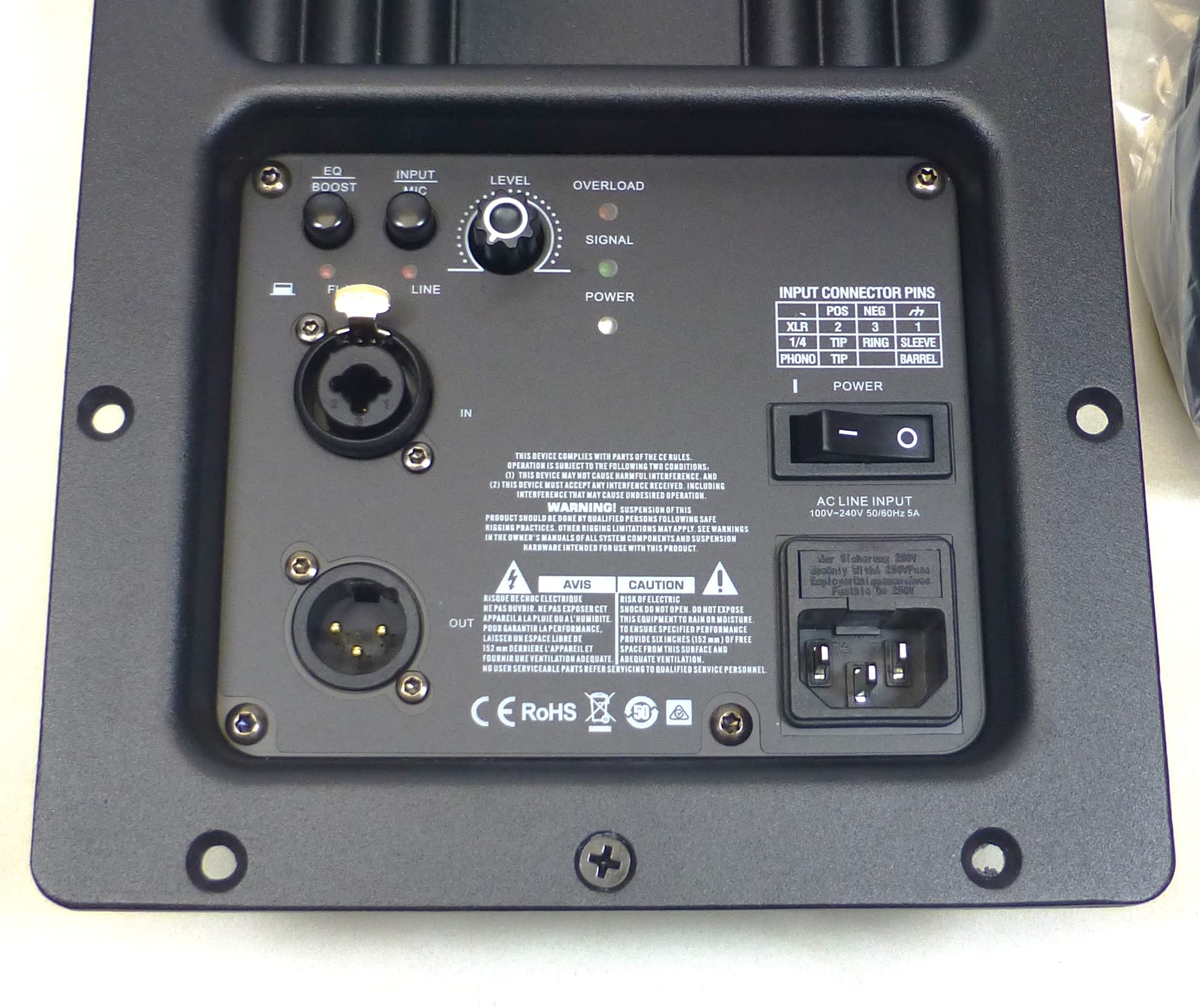

New ! LASE PRX 600AB Replacement Amplifier Module for JBL PRX 615M & 612M Powered Speakers . Very Easy To Install. The LASE PRX 600A control panel is simple and neatly laid out, with the user controls being restricted to power, a rotary level control, and a pair of push switches for selecting 'EQ' Boost/Flat settings or Line/ Mic sensitivity. There are two XLR connectors, one for signal input and one for link out, so that additional speakers or systems can be daisy‑chained. The input socket is one of those handy 'combi' types, and will accept either a three‑pin XLR or a standard jack plug (balanced or unbalanced).

Power Output 500W RMS (overall) ; 1000W ( Peak)

LF. 400W RMS (800W Peak) @ 2 Ω

HF. 100W RMS (200W Peak) @ 8Ω

Frequency Response(± 0.3dB,1W/8Ω) 54 Hz - 18 kHz /Crossover Frequency 1.8 Khz / THD 20 Hz - 20 kHz for 1 W <0.1%

Signal-to-Noise Ratio >135 dBA

Channel separation (Crosstalk) at 1 kHz >70 dB.

Input Connector Balance Female XLR/ 1/4" Line/Mic. Level

Input Output Connector Balanced Male XLR " Mix Out".

Class D Operating voltage 110 V 50/60 hz nominal.

Dimensions (L×W×D) 18" x 7.25" x 3.5" (457.2mm x 184.15mm x 88.9mm). /Packing dimension 19" x 8.25 x 4.5" (482.6mm x 209.55mm x 114.3mm) / Net weight 7.5lbs (3.4Kgm) /Gross weight 8lbs(3.62Kgm)
