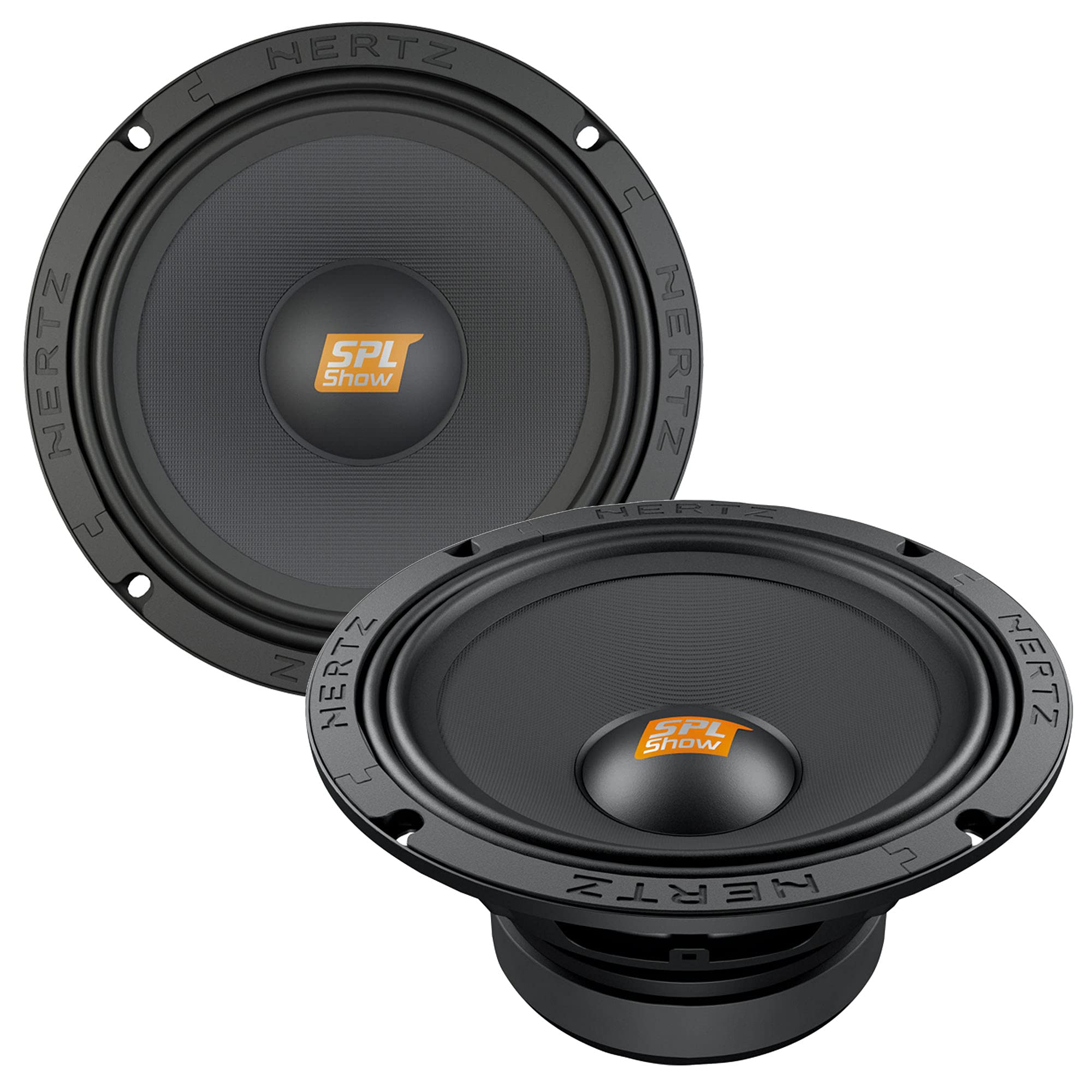

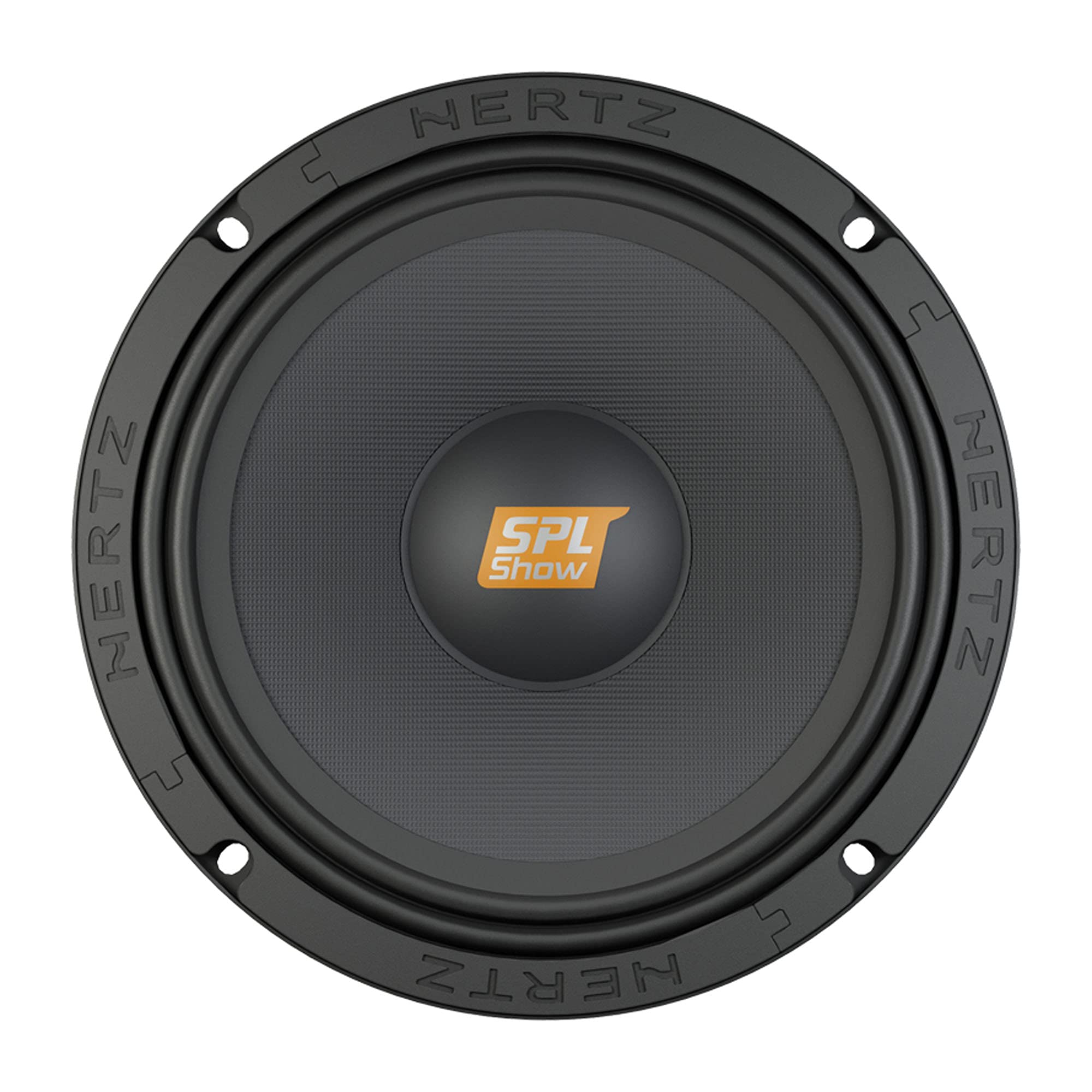

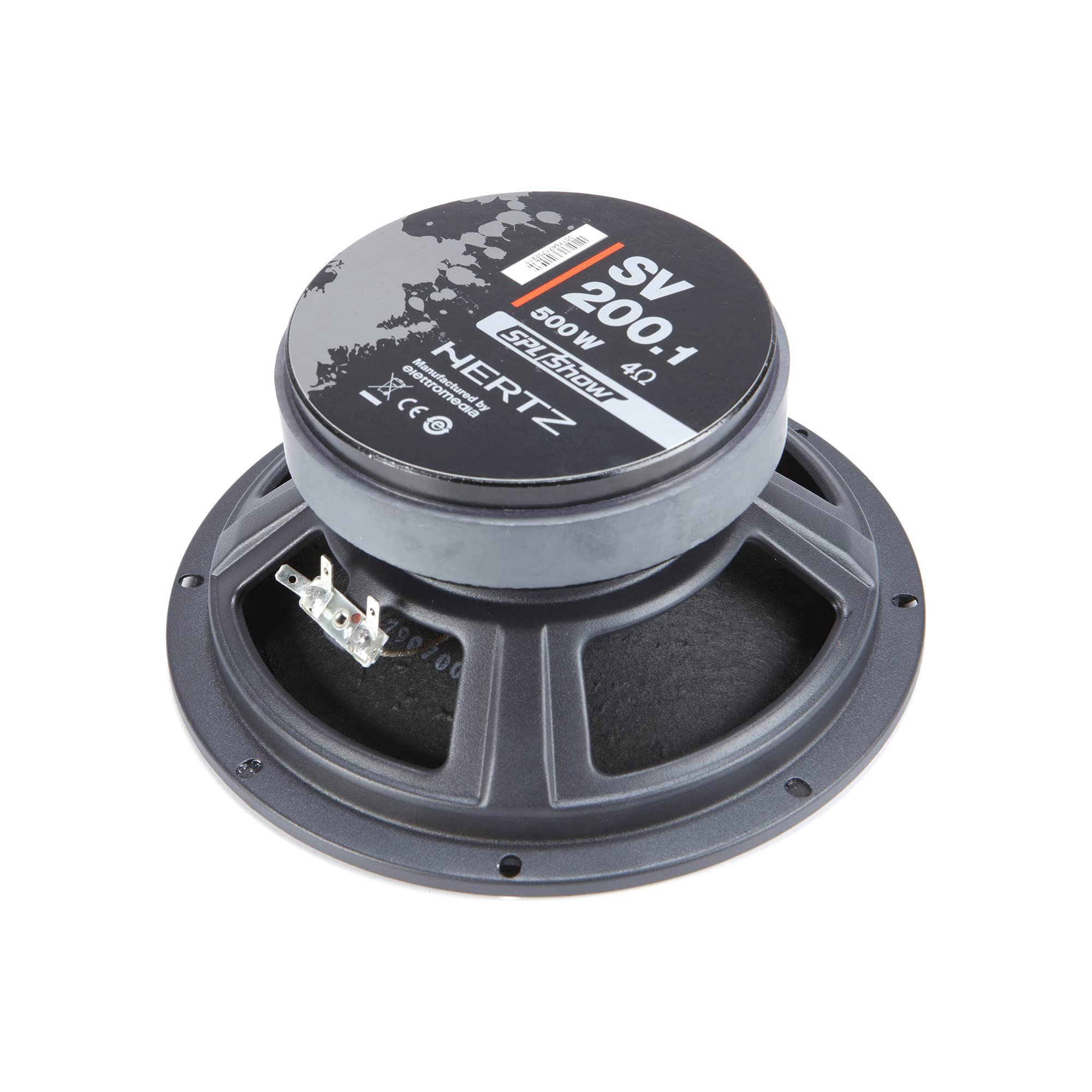

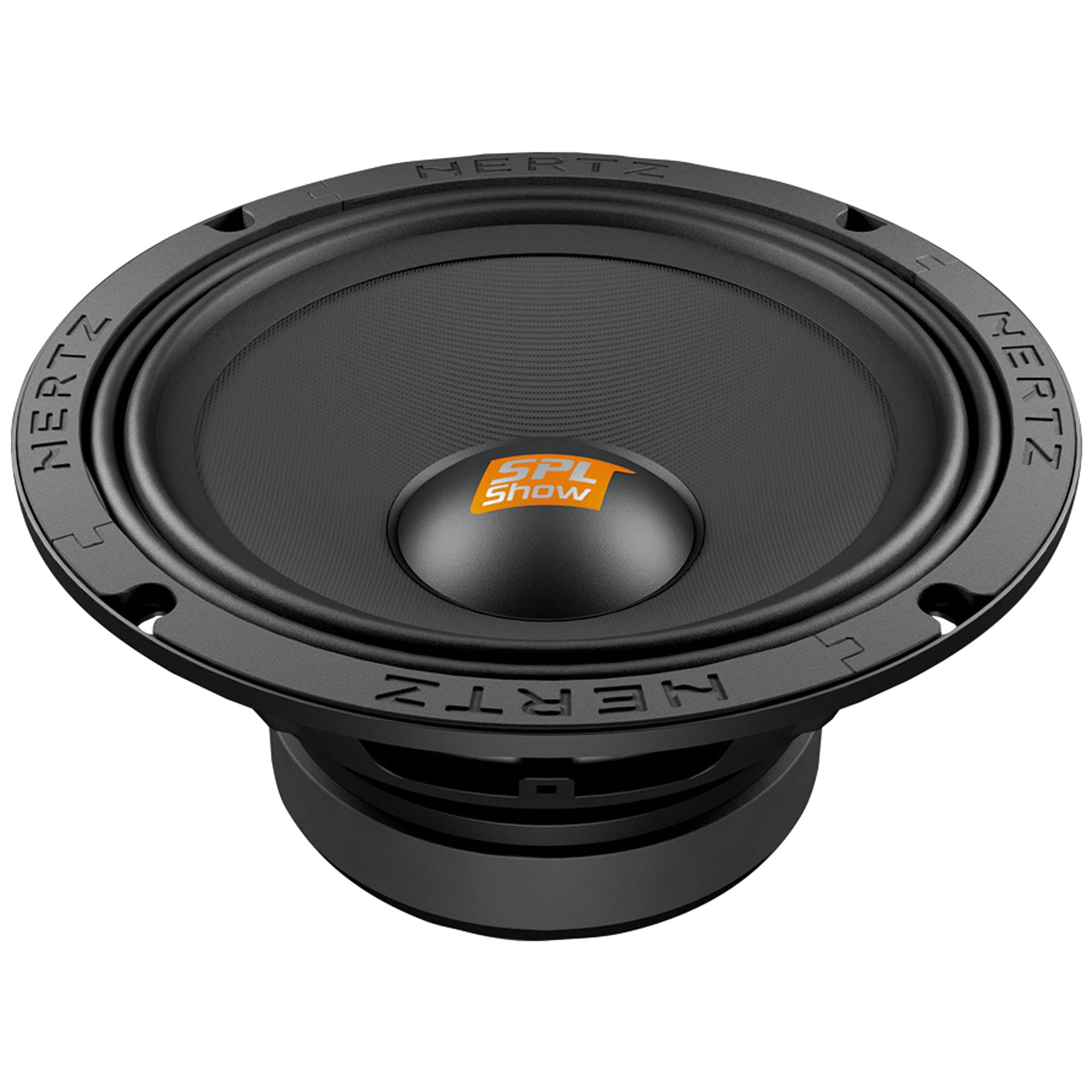

The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores. Features - High magnetic permeability plates provide constant, even flux. High density flux ferrite magnet, for top SPL performance. Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability. High current, tin-plated terminals. Damped fabric surround; for maximum lightness and extreme SPL. Water-repellent, pressed paper cone. Specifications - Size mm (in.): 200 (8) Power Handling - Peak W: 500 Impedance Ω: 4 Frequency response Hz: 100 ÷ 9k Sensitivity dB SPL: 100 Voice coil Ø mm (in.): 38 (1.5) Magnet: High density flux ferrite Cone/Dome: Ultra light pressed paper
