American Bass 4 SQ 6.5" 80W RMS Car Audio Speaker System with 4-Channel Amplifier & Wiring Kit - Premium Sound for Trucks, SUVs & Custom Car Audio Upgrades

Description of RXA-F1: Over the years, the technology used to create audio amplifiers has grown by leaps and bounds. We consider it our mission to use our expertise in developing the latest technologies and to bring you the absolute best sounding amplifiers on the market. From its clean, sleek design to its high quality components, you will be amazed at the quality and power that these new Phenom amps offer.. . The RXA-F1 is a 4 channel high power amplifier with 1600w peak. 380 Watts (4 x 95 Watts @ 2 ohms). You can also bridge the amplifier and get 2 x 200 Watts bridged @ 4 Ohms. Here at Rockville we offer the best value in car audio. It has a fully adjustable 12dB/Octave cross over with differential circuitry. High Level inputs, also referred to as Speaker Level inputs, allow you to install the amplifier into your vehicle even if you do not have any preamp outputs available. That means you can install this amplifier to your factory or aftermarket receiver. Other features include Auto-Start Smart turn-on (This function senses when there is a signal from the head unit and automatically turns on the amplifier hence no need to run a Remote Turn-On wire), a fully adjustable 12dB bass equalizer, 2 ch/ 4 ch input mode switch, mute and delay soft start technology, and a crossover band-pass control. The RXA-F1 is protected by a full IC controlled circuit and has professional peak limiter circuitry guaranteeing distortion free musical playback at all levels.. . One last point I want to make about this amplifier is efficiency. The circuitry of this amplifier is a class A/B circuitry. Class A/B is known to have amazing sound quality. Pro audio amps usually all are class A/B. Class A/B however is not known for its efficiency. To make this amplifier more efficient we simulated a class “G” amplifier. Class G is technology that switches the rail voltage depending on how much power is being used. We have similar technology built into these class A/B amplifiers which make these about 65-70% efficiency which is just amazing for a class A/B amplifier.

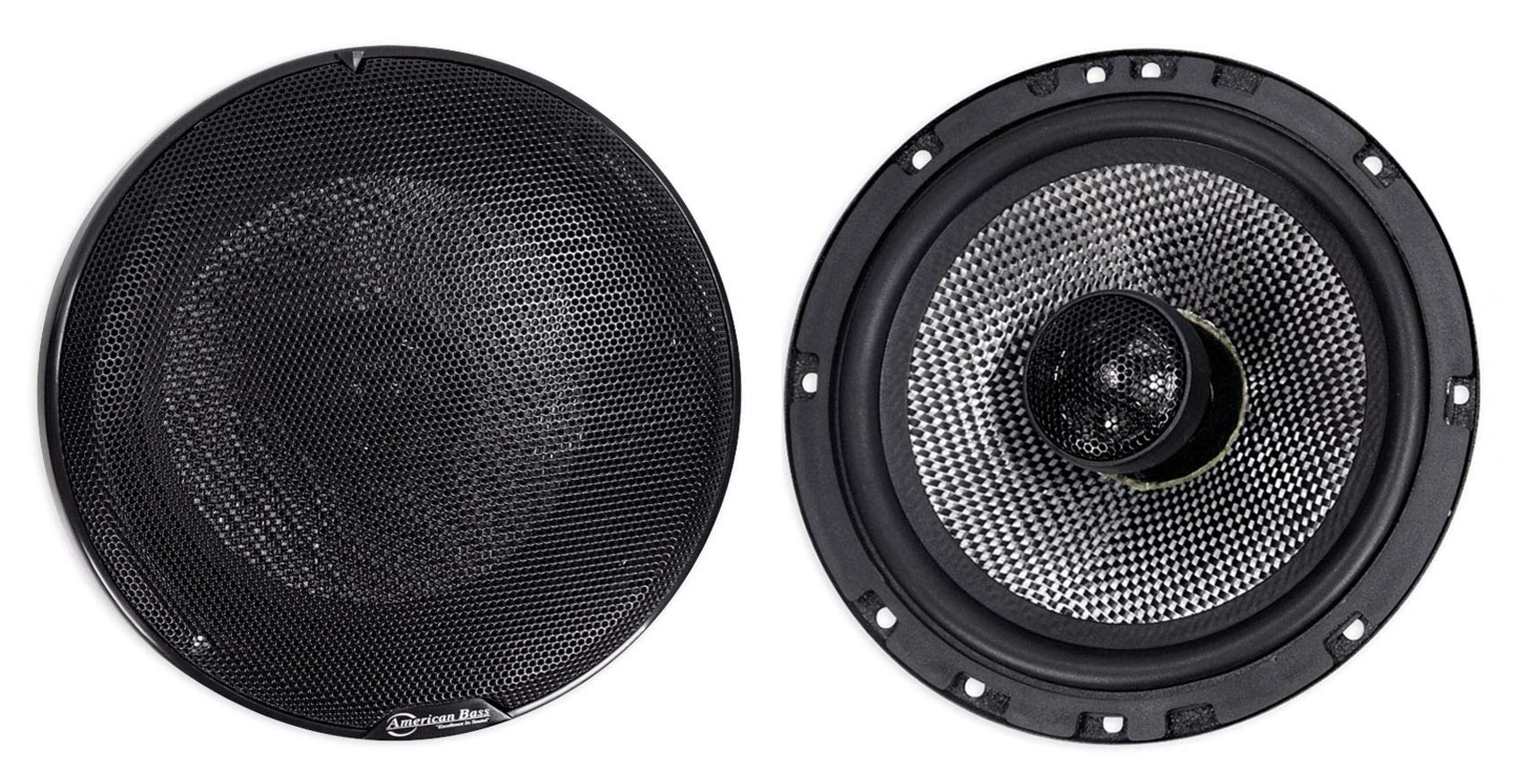

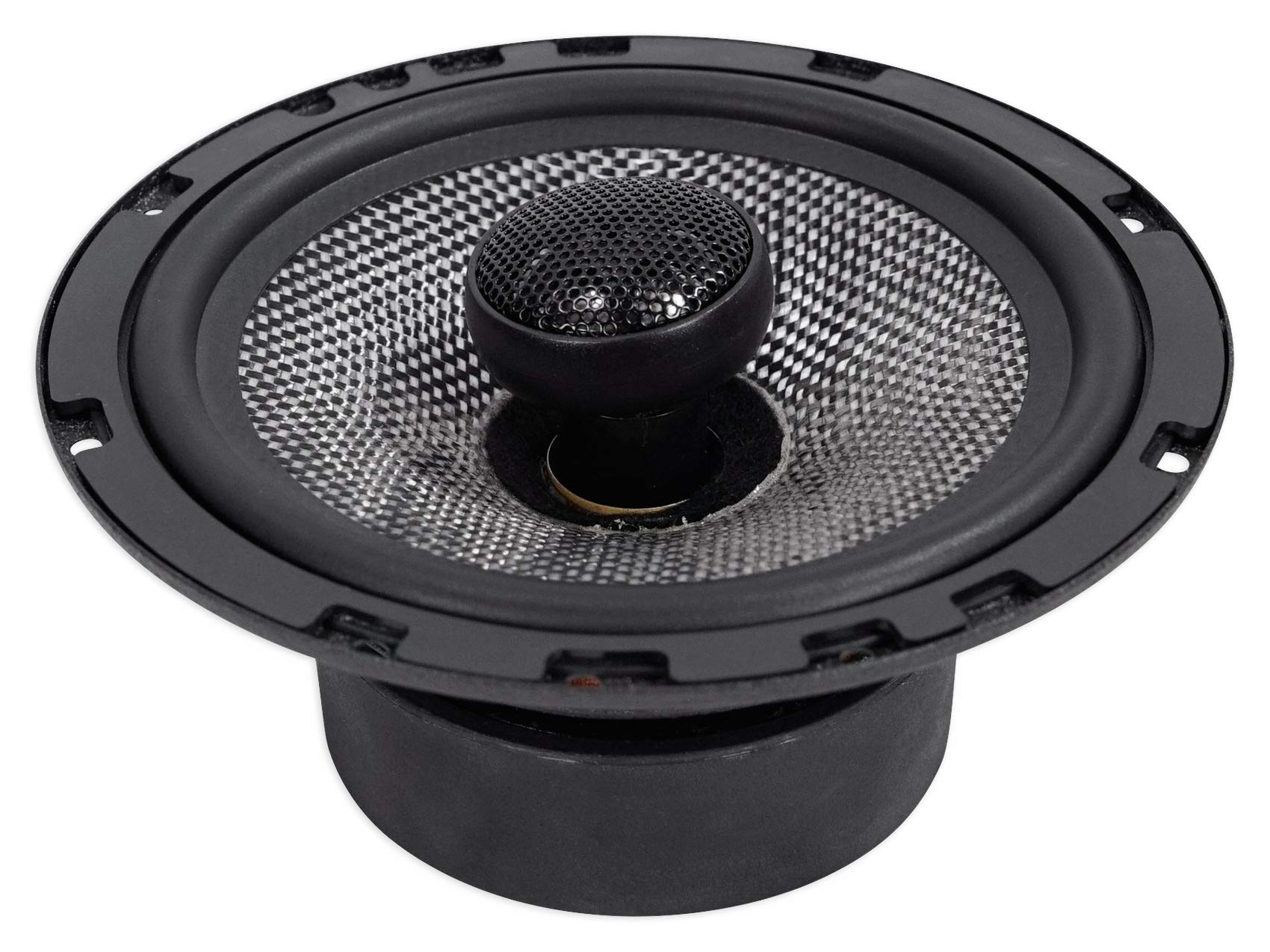

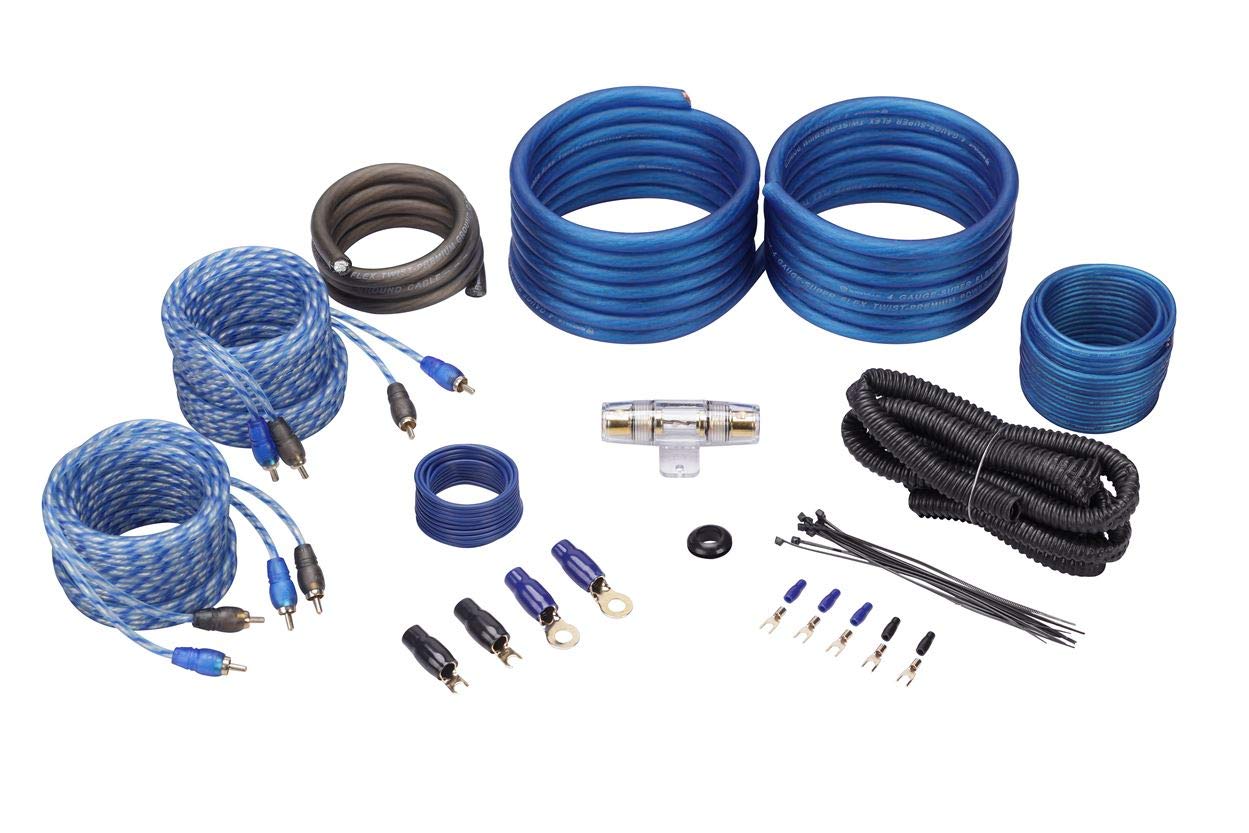

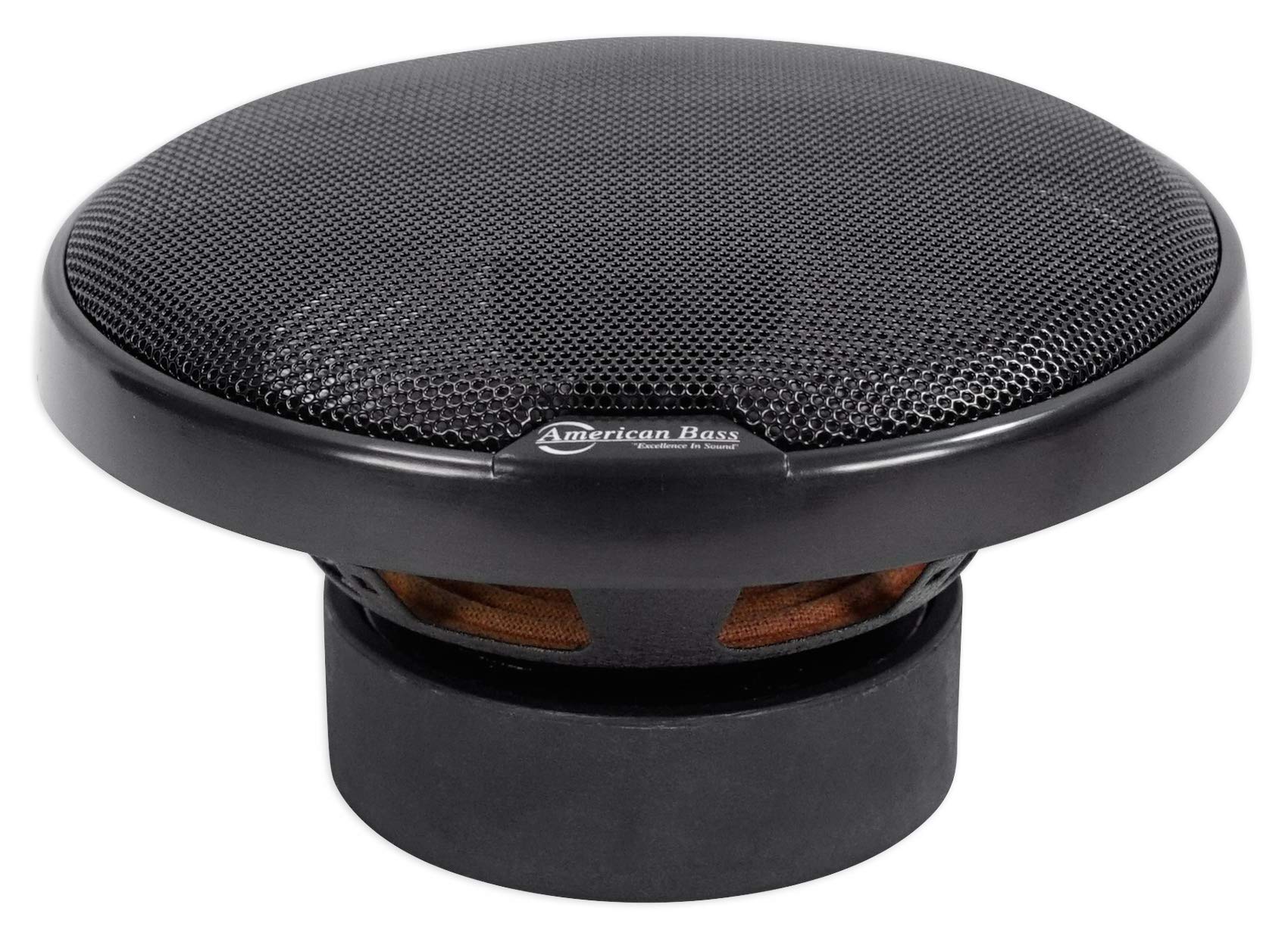

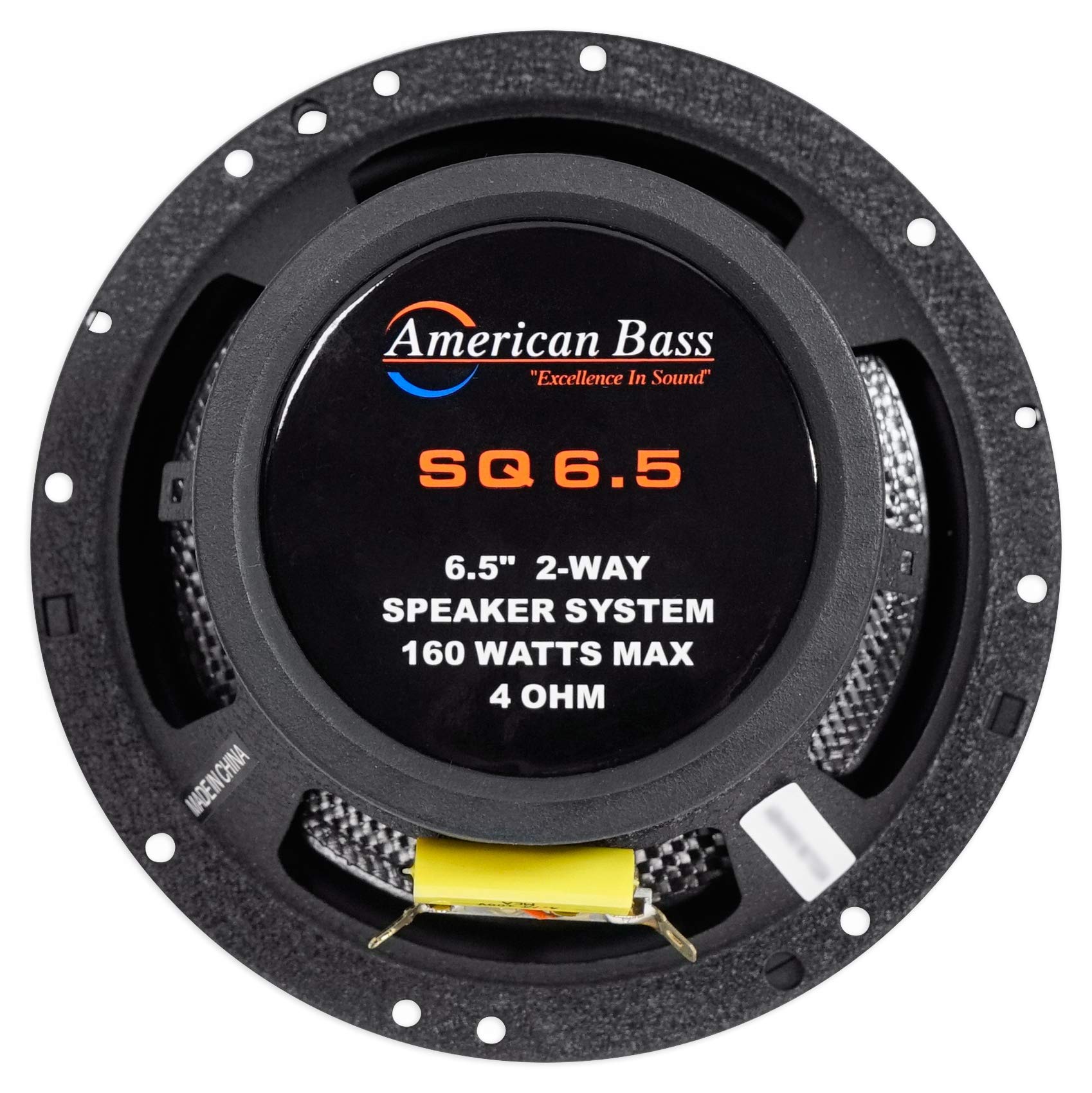

Package Includes (1) Pair of American Bass SQ 6.5" 2-Way 80w RMS Car Audio Speakers w/ Swivel NeoTweeter. (1) RockviIle RXA-F1 1600 Watt Peak/800w RMS 4 Channel Amplifier Car Stereo Amp. (1)RockvilIe RWK42 4 Gauge 4 Chan Car Amp Wiring Installation Wire Kit (2) RCA's. Woven carbon fiber cone. Butyl Rubber Surround. 25 oz magnet. 80w RMS / 160w MAX. Frequency Response 55hz - 22khz. Ferro Fluid Cooled. 4 ohm impedence. Specifications RMS Power Per Speaker 80W. Max Power Per Speaker 160W

Impedence (Ohms) 4. Sensitivity Db 89Db. Mounting Depth (In) 2.75. Cutout Size (In) 5.5. Frequency Response 55Hz - 22Khz. Magnet Size (Oz) 25. Voice Coil Size 1. Basket Type S Steel. RockviIle RXA-F1 1600 Watt Peak/800w RMS 4 Channel Amplifier Car Stereo Amp

CEA Compliant Power Ratings 260 Watts (4 x 65 Watts) at 4 ohms and 1% THD+N 380 Watts (4 x 95 Watts) at 2 ohms < 1% THD 2 x 200 Watts bridged @ 4 Ohms < 1% THD RMS Power Ratings 800 Watts (4 x 200 Watts RMS) @ 2 ohms 800 Watts (2 x 400 Watts RMS) @ 4 ohm Bridged 500 Watts (4 x 125 Watts RMS) @ 4 ohms. CEA Compliant Power Ratings 260 Watts (4 x 65 Watts) at 4 ohms and 1% THD+N 380 Watts (4 x 95 Watts) at 2 ohms < 1% THD 2 x 200 Watts bridged @ 4 Ohms < 1% THD

260 Watts (4 x 65 Watts) at 4 ohms and 1% THD+N. 380 Watts (4 x 95 Watts) at 2 ohms < 1% THD. 2 x 200 Watts bridged @ 4 Ohms < 1% THD. RMS Power Ratings 800 Watts (4 x 200 Watts RMS) @ 2 ohms 800 Watts (2 x 400 Watts RMS) @ 4 ohm Bridged 500 Watts (4 x 125 Watts RMS) @ 4 ohms. 800 Watts (4 x 200 Watts RMS) @ 2 ohms. 800 Watts (2 x 400 Watts RMS) @ 4 ohm Bridged. 500 Watts (4 x 125 Watts RMS) @ 4 ohms. Peak Power 1600 Watts (2 x 800 @ 2 ohms or 1 x 1600 @ 4 Ohms). High-Speed MOSFET Power Supply

Studio-Grade Bipolar Output Stage Transistors. Fully Adjustable 12dB Bass Equalizer. 2-Ohm Stable Stereo. 4-Ohm Mono Bridgeable. 3 Channel Mixed-Mono Capable. Mute and Delay Soft Start System. Full IC-Controlled Protection Circuitry. 2 CH / 4 CH Input Mode Switch. RCA Preamp Line Output. ELNA Audiophile Capacitors. 8 Volt Preamp Circuitry. Status Mode LED Indicator. Minimum THD < 0.05%. Frequency Response 10Hz - 40KHz. Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
